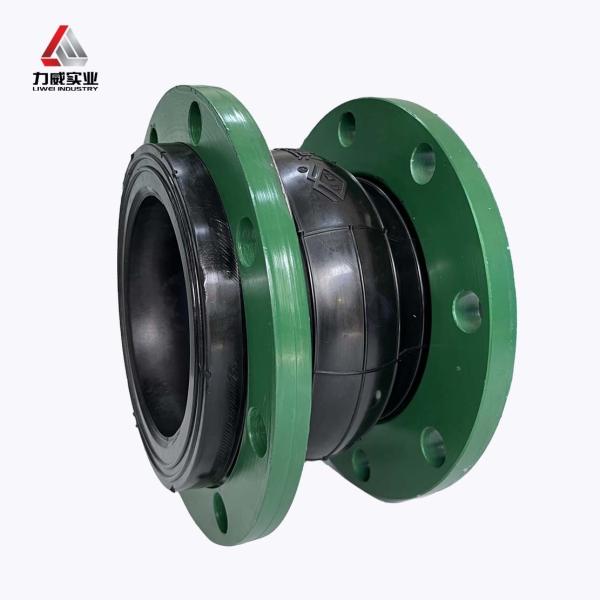

Flange Connection Type Single Ball Rubber Joint Vibration Damping Corrosion Resistant
Product Description:
Our liwei brand offers high-quality Rubber single sphere flexible hose joints, perfect for a variety of applications. These Single sphere flexible connection fittings are designed to accommodate thermal movements and vibrations, ensuring a durable and reliable link in your piping systems. The Rubber flexible single ball joint is customizable to meet your specific needs and can handle a range of temperatures and pressures, making it a versatile choice for your fluid handling requirements.
Features:
- Rich production experience
- Professional technical team
- The back office collaborates effectively
- High quality product accessories
- Corrosion Resistance: Yes
- Vibration Damping: Yes
Technical Parameters:
DN
Diameter | Length
mm | Axis displacement | Radial
displacement | Deflexion
displacement |
| TYPE 1 | TYPE 2 |
| mm | inch | | Extension | Compression | Extension | Comgression | TYPE 1 | TYPE 2 | TYPE1 | TYPF 2 |
| 32 | 11/4" | 90 | 6 | 10 | | | 9 | | ±7.5° | |
| 40 | 11/2” | 95 | 7 | 10 | | | 9 | | ±7.5° | |
| 50 | 2" | 105 | 7 | 10 | | | 10 | | ±7.5° | |
| 65 | 21/2” | 115 | 7 | 13 | | | 11 | | ±7.5° | |
| 80 | 3" | 135 | 8 | 15 | | | 12 | | ±7.5° | |
| 100 | 4" | 150 | 10 | 19 | | | 13 | | ±7.5° | |
| 125 | 5" | 165 | 12 | 19 | | | 13 | | ±7.5° | |
| 150 | 6" | 180 | 12 | 20 | | | 14 | | ±7.5° | |
| 200 | 8" | 210 | 16 | 25 | 30 | 35 | 22 | 25 | ±7.5° | ±10° |
| 250 | 10" | 230 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° |
| 300 | 12" | 245 | 16 | 25 | 30 | 40 | 22 | 25 | ±7.5° | ±12° |
| 350 | 14" | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° |
| 400 | 16" | 255 | 16 | 25 | 35 | 45 | 22 | 30 | ±7.5° | ±12° |
| 450 | 18" | 255 | 16 | 25 | 36 | 47 | 22 | 30 | ±7.5° | ±12° |
| 500 | 20" | 255 | 16 | 25 | 36 | 48 | 22 | 30 | ±7.5° | ±12° |
| 600 | 24" | 260 | 16 | 25 | 40 | 50 | 22 | 33 | ±7.5° | ±12° |
| 700 | 28" | 260 | 16 | 25 | 40 | 55 | 22 | 33 | ±7.5° | ±12° |
| 750 | 30" | 260 | | | 40 | 55 | | 33 | | ±12° |
| 800 | 32" | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° |
| 900 | 36" | 260 | 16 | 25 | 45 | 55 | 22 | 35 | ±7.5° | ±12° |
| 1000 | 40" | 260 | 16 | 25 | 45 | 60 | 22 | 35 | ±7.5° | ±12° |
| 1100 | 44" | 300 | | | 45 | 60 | | 35 | ±7.5° | ±12° |
| 1200 | 48" | 300 | 16 | 25 | 50 | 60 | 24 | 38 | ±7.5° | ±10° |
| 1300 | 52" | 300 | | | 50 | 60 | | 38 | | ±10° |
| 1400 | 56" | 350 | | | 50 | 70 | | 40 | | ±10° |
| 1500 | 60" | 350 | | | 60 | 70 | | 40 | | ±10° |
| 1600 | 64" | 350 | 18 | 25 | 60 | 70 | 24 | 46 | ±7.5° | ±10° |
| 1800 | 72" | 400 | 18 | 25 | 60 | 75 | 24 | 48 | ±7.5° | ±10° |
| 2000 | 80" | 450 | | | 70 | 75 | | 50 | | ±10° |
| 2200 | 88" | 500 | | | 70 | 80 | | 60 | | ±10° |
| 2400 | 96" | 500 | | | 80 | 80 | | 60 | | ±10° |
| 2600 | 104" | 500 | | | 85 | 80 | | 60 | | ±10° |
| 2800 | 112" | 550 | | | 85 | 80 | | 60 | | ±10° |
| 3000 | 120" | 550 | | | 85 | 80 | | 60 | | ±10° |
| • Special size and length can be customized for you. |
Applications:
The rubber single ball joint design is convenient for installation and can effectively absorb the vibration, noise, and thermal expansion or contraction of the pipeline system.
Widely used in fields such as water treatment, wastewater treatment, heating and air conditioning, fire protection, and industrial processing.
The minimum order quantity is only one set, and the price is negotiable, suitable for small and large projects.
FAQ:
Q1: What is the model range available for the Liwei Single Sphere Flexible Rubber Joint?
A1: The Liwei Single Sphere Flexible Rubber Joint is available in a wide range of models, from DN15 to DN4000, to suit various piping requirements and applications.
Q2: Where is the Liwei Single Sphere Flexible Rubber Joint manufactured?
A2: The Liwei Single Sphere Flexible Rubber Joint is manufactured in Henan, China, ensuring high-quality production standards.
Q3: What certifications does the Liwei Single Sphere Flexible Rubber Joint hold?
A3: The product holds several certifications, including ISO9001, TUV, WRAS, CO, MTC, PL, IV etc., demonstrating its compliance with international quality and safety standards.
Q4: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q5: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
